Description

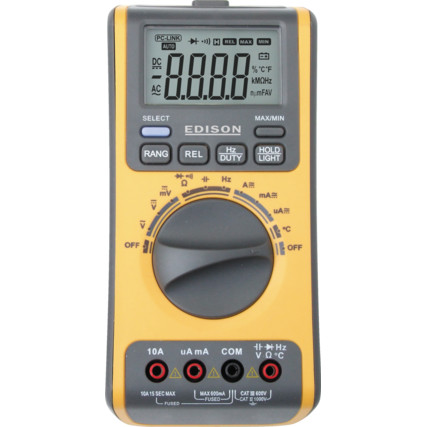

Edison EDI5163440K AUTO RANGE MULTIMETER – USB INTERFACE

DAM060 Auto Range Digital Multimeter

Within the Edison™ range of multimeters you will find direct reading multimeters and non-contact reading multimeters. Ideal for electrical troubleshooting and straightforward environmental testing in residential and commercial environments.

Auto Range Digital Multimeter with USB interface, ideal for electrical troubleshooting and straightforward maintenance, initial start-up testing and R and D.
Temperature testing (K Type): -5°C to 1000°C.
AC voltage: 700V.
DC voltage: 1000V.
AC/DC current: 10A.
Resistance: 60MW.
Capacitance: 300mF.
Frequency/duty cycle: 1Hz to 1MHz.
Diode testing and buzzer.
Relative measurement function. Clear display with LED back light and data hold function. Auto power ‘OFF’ and low power indicator. Auto/manual range. Electronic protection system.
Digital display count: 6000.
Pack includes: digital multimeter, test probes, temperature sensor, clamp-on test lead, USB Interface, CD rom ‘PC-LINK’ software (compatible with Windows 2000, NT or XP), 9V battery (installed), instruction manual.
PC-LINK software features: measure graph, measure data record, simulate LCD display, analogue dial plate display, measure max/min display, sampling interval, graph export, measure data save.
Dimensions (W x D x H): 165 x 65 x 230mm.

Specification
