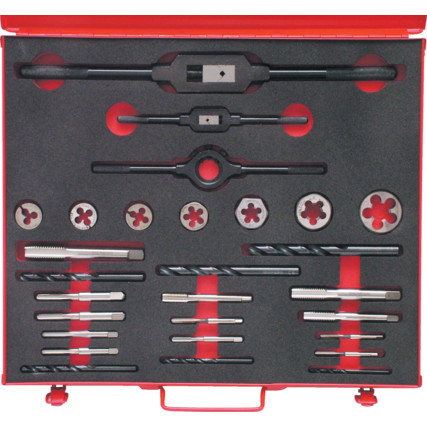

Sherwood SHR0869992K 3/16-3/4″ BSW 28-PCE HSS THREADING SET IN CASE
Sherwood SHR0869992K 3/16-3/4″ BSW 28-PCE HSS THREADING SET IN CASE
Description
Sherwood SHR0869992K 3/16-3/4″ BSW 28-PCE HSS THREADING SET IN CASE
BSW Threading Set
BSW Threading Set 3/16” – 3/4” BSW:
HSSGT Straight Flute Taps:
Taper: 3/16” x 24, 1/4” x 20, 5/16” x 18, 3/8” x 16.
Second: 7/16” x 14, 1/2” x 12, 5/8” x 11, 3/4” x 10.
Plug: 3/8” x 16, 5/16” x 18, 1/4” x 20, 3/16” x 24.
Bar Type Tap Wrenches: 1/4” – 3/4” and 1/16” – 1/4”.
Tapping Drills to Suit: HSS S/S. 3.70, 5.10, 6.50, 7.90, 9.30, 10.50mm
HSS 1” O/D Dies: 1/4” x 2, 5/16” x 18 and 3/8” x 16.
Diestock: 1” O/D.
HSS Die Nuts: 7/16” x 14, 1/2” x 12, 5/8” x 11 and 3/4” x 10.
Specification
| Property | Value |
|---|---|
| Brand | Sherwood |
| Chamfer | Taper; Second; Plug [-] |
| Die Hex Width | 1.01; 1.10; 1.30; 1.49 [-] |
| Die Type | Hex Die Nut; Round Die [-] |
| EAN13 Barcode | 5036140185258 |
| eCl@ss Code | 21010210 |
| Includes | Carrying Case [-] |
| Kit Type | Tap, Die & Drill [-] |
| Largest Thread Size | 3/4 in |
| Number of Dies | 7 [-] |
| Number of Pieces | 28 [-] |
| Number of Taps | 12 [-] |
| Smallest Thread Size | 3/16 in |
| Supplier Part No. | SHR-086-9992K |
| Tap Dimensions Standard | BS1127; ISO 529; DIN 1814; DIN 225; BS 328/DIN 338N [-] |
| Tap Finish/Coating | Uncoated [-] |
| Tap Material | High Speed Steel [-] |
| Tap Type | Straight Flute [-] |
| Tap Wrench Type | Straight-handle Bar [-] |
| Thread Direction | Right Hand [-] |
| Thread Size Range | 3/16″ to 3/4″ [-] |
| Thread Standard | BSW [-] |
| UNSPSC Code | 27112806 |
Further Information
| Property | Value |
|---|---|
| Product Number | |
| Kit Type | Tap, Die & Drill |
| Number of Pieces | 28 |
| Includes | (2) Bar Type Tap Wrenches: 1/4”-3/4”, 1/16” – 1/4” (3) HSS Dies: 1/4”-2, 5/16”- 18, 3/8”-16 (4) HSS Die Nuts: 7/16”-14, 1/2”-12, 5/8”-11, 3/4”-10 (4) Straight Flute Plug: 3/8”-16, 5/16”-18, 1/4”-20, 3/16”-24 (4) Straight Flute Second Taps: 7/16”-14, 1/2”-12, 5/8”-11, 3/4”-10 (4) Straight Flute Taper Taps: 3/16”-24, 1/4”- 20, 5/16”-18, 3/8”-16 (6) HSS Jobber Drills: 3.70mm, 5.10mm, 6.50mm, 7.90mm, 9.30mm, 10.50mm Carrying Case Die Stock: 1” O/D |
| Tap Wrench Type | Straight-handle Bar |
| Tap Material | High Speed Steel |
| Tap Finish/Coating | Uncoated |
| Thread Standard | BSW |
| Thread Direction | Right Hand |
| Tap Type | Straight Flute |
| Thread Size Range | 3/16 to 3/4 |
| Chamfer | Plug Second Taper |
| Die Type | Hex Die Nut Round Die |
| Die Hex Width | 1.01 1.1 1.3 1.49 in. inch mm millimetre |
| Tap Dimensions Standard | BS 1127 BS 328/DIN 338N DIN 1814 DIN 225 ISO 529 |
| Number of Taps | 12 |
| Number of Dies | 7 |
| Largest Thread Size | 3/4″ |
| Smallest Thread Size | 3/16″ |
Additional information
| Weight | 3 kg |
|---|
