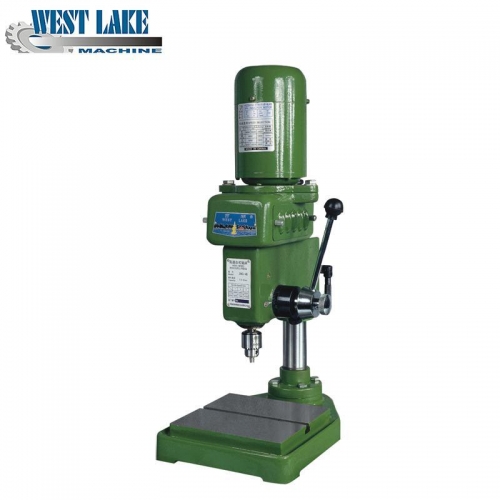

West Lake ZWG-4B High-Speed Drilling 4mm, 150W, 9000rpm, 150kg
West Lake ZWG-4B High-Speed Drilling 4mm, 150W, 9000rpm, 150kg
Description
West Lake ZWG-4B High-Speed Drilling 4mm, 150W, 9000rpm, 150kg
Model: ZWG-4B
ZWG-4B provides high speed and great accuracy in drilling.
Features
- High spindle speeds
- Belt driven on an even keel
- Minimized vibration
- Great precision & rigidity
Specifications
| Max Drilling Capacity | 4mm |
| Diameter of column | 40mm |
| Spindle Travel | 40mm |
| Distance spindle axis to column surface | 127mm |
| Max. Distance spindle nose to worktable | — |
| Max. Distance soindle nose to nose | 170mm |
| Spindle Taper | B10 |
| Spindle Speeds Range | 2800 – 9000rpm |
| Spindle speeds | 3 |
| Dimensions of worktable surface | — |
| Dimension of base worktable surface | 180mm x 175mm |
| Overall Height | 618mm |
| Motor | 150W |
| Weight | 22.5kg |
Additional information
| Weight | 150 kg |
|---|
