Sherwood SHR0209260K 5-PCE 90DEG HSS-COBALT S/S COUNTERSINK SET
Sherwood SHR0209260K 5-PCE 90DEG HSS-COBALT S/S COUNTERSINK SET
Description
Sherwood SHR0209260K 5-PCE 90DEG HSS-COBALT S/S COUNTERSINK SET

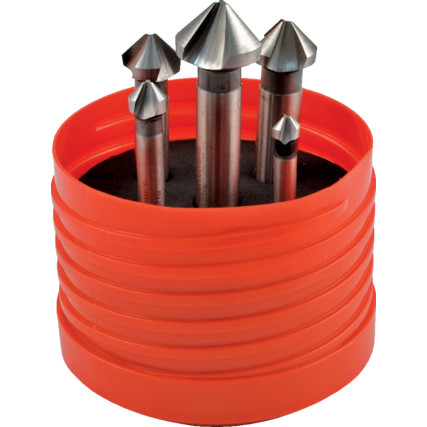

HSS-Co 5% 90° Countersinks – 5 Piece Set
General purpose chamfering/deburring and countersinking tool. bright finish, 3 flute, ground all over. Made to DIN 335.
5 Piece Set Contents: 6.30, 8.30, 13.40, 15.00 and 19.00mm.
Specification
| Property | Value |
|---|---|
| Body Diameter | 6.3; 8.3; 13.4; 15; 19 mm |
| Brand | Sherwood |
| Countersink Angle | 90 ° |
| Cutting Diameter | 6.3; 8.3; 13.4; 15; 19 mm |
| EAN13 Barcode | 5036140270176 |
| eCl@ss Code | 21010100 |
| Finish/Coating | Uncoated [txt] |
| Material | Cobalt High Speed Steel [txt] |
| Material Grade | M35 [txt] |
| Number of Flutes | 3 [#] |
| Overall Length | 45; 50; 56; 60; 63 mm |
| Pilot Diameter | N/A [txt] |
| Shank Diameter | 5; 6; 8; 10; 10 mm |
| Shank Type | Straight [txt] |
| Standards Met | DIN 335 [txt] |
| Supplier Part No. | SHR-020-9260K |
| Taper Shank Size | N/A [txt] |
| Type | Multiple Flute [txt] |
| UNSPSC Code | 27112812 |
Further Information
| Property | Value |
|---|---|
| Material | Cobalt High Speed Steel |
| Product Number | |
| Number of Pieces | 5 |
| Tool Type | |
| Finish/Coating | Uncoated |
| Countersink Angle | 90 ° degree |
Additional information
| Weight | 1 kg |
|---|
